Steam Y Container Stainless Steel

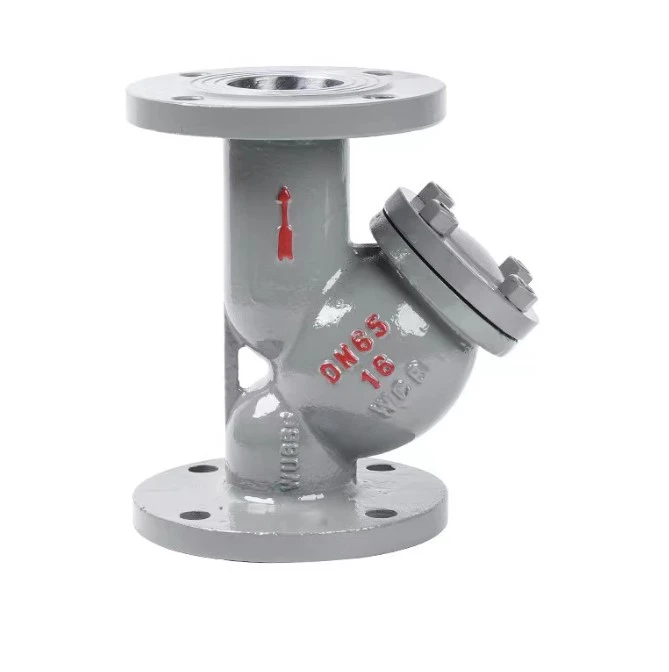

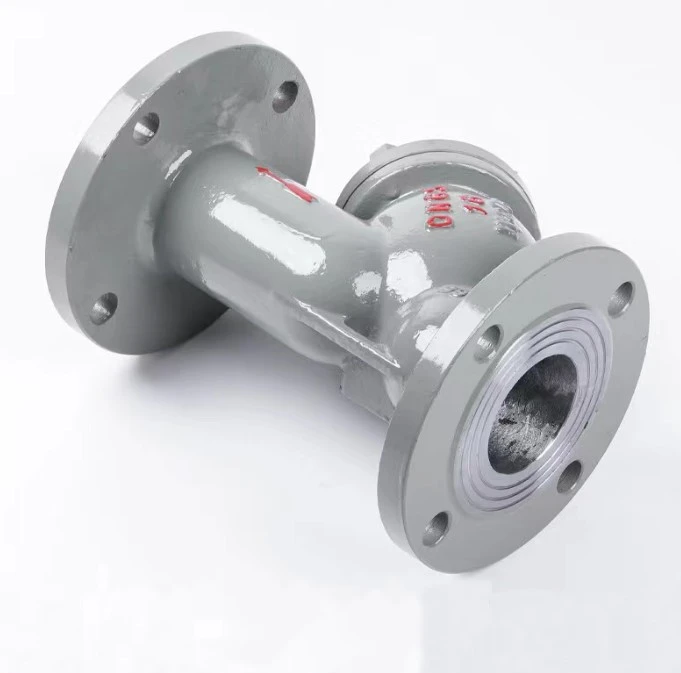

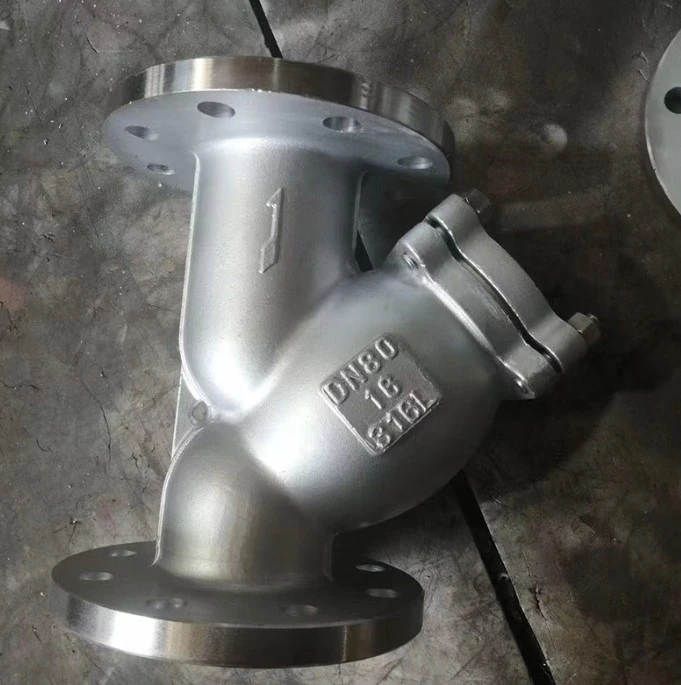

Steam Y-type filter is a filtering device used in steam pipeline systems, mainly used to remove impurities in the medium to protect the normal use of valves and equipment. Its main characteristics include advanced structure, low resistance, and convenient sewage discharge.

Y-shaped filters are usually installed at the inlet end of pressure reducing valves, relief valves, constant water level valves, or other equipment to remove impurities from the medium. The filter screen adopts a stainless steel double-layer mesh structure, which is sturdy and durable, with characteristics such as low flow resistance and convenient sewage discharge. According to user needs, different mesh sizes of filters can be set. Generally, the water mesh size is 18-30 mesh, the ventilation mesh size is 40-100 mesh, and the oil mesh size is 100-480 mesh.

The working principle of a Y-shaped filter is that when the fluid passes through the filter, solid impurity particles are blocked on the filter screen, and clean fluid flows out from the filter screen. Regular cleaning of the filter screen is a necessary maintenance measure to ensure the normal operation of the filter.

In addition, Y-type filters are suitable for various media, including steam, air, kerosene, water, weakly corrosive gases, and liquids. Its appearance is basically the same (Y-shaped), and all internal components are made of stainless steel material to ensure the high-temperature resistance of the filter.

The steam Y-shaped filter is an efficient and reliable filtration device widely used in various industrial fields, such as construction, chemical, power, metallurgy, rubber, papermaking, textile, coal, and food industries.
