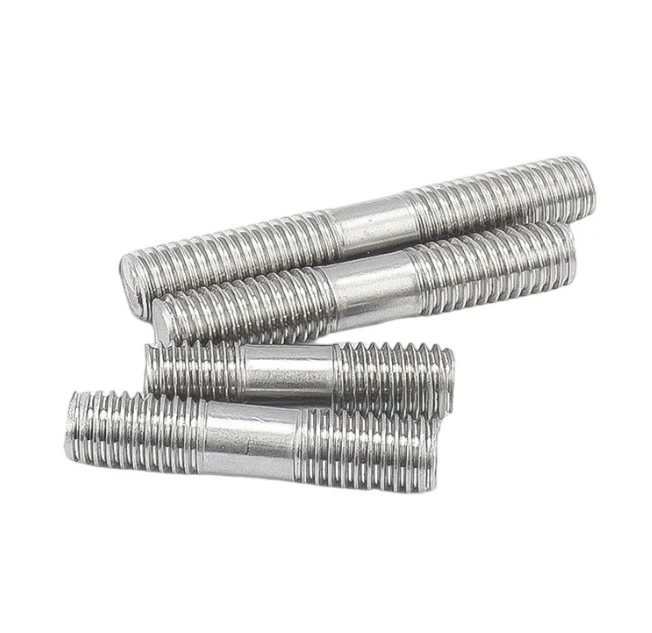

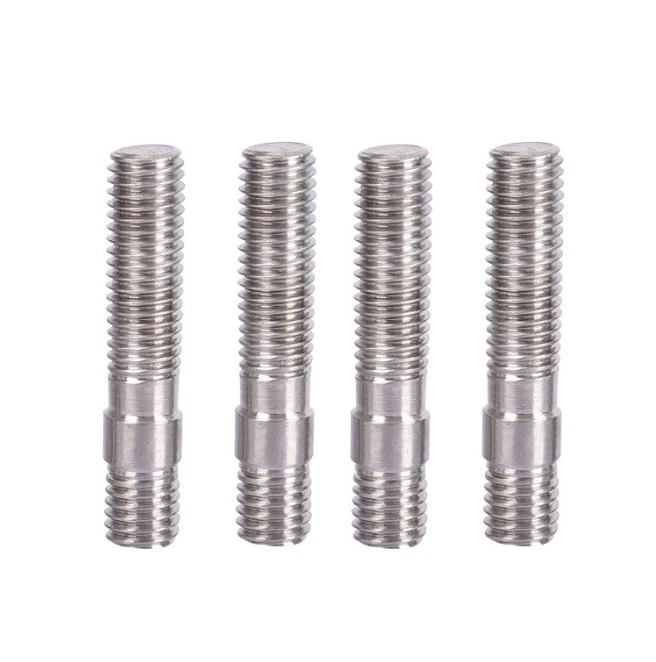

Durable Stainless Steel Studs For Glass Double End Studs
Stainless steel double head screw is a fastener that has no head and only two segments with external threads.
The connection method is to screw one end into the part with an internal threaded hole and the other end through the part with a through hole, then screw on the nut to tightly connect these two parts into a whole.
This type of connection is called a bolt connection and also belongs to a detachable connection.
Stainless steel double headed bolts come in various forms, with the same and opposite directions depending on the rotation direction of the two threads.
Common materials include 304, 316, A2-70, A4-70, etc. In addition, there are high-strength grade 8.8 ASTM A193 b7 stainless steel double end bolt.
Stainless steel double headed bolts are widely used in various industrial fields, such as construction and civil engineering, mechanical manufacturing, etc. Its main advantages include strong corrosion resistance and suitability for electrical connectors in highly corrosive environments.
In addition, stainless steel double headed bolts can also be used in situations where the pressure rating is less than or equal to PN40, as well as in harsh working conditions.
Stainless steel double headed bolts are a powerful and widely used fastener product, with good corrosion resistance and detachablity, suitable for various industrial application scenarios.
What are the specific installation methods and steps for stainless steel double headed bolts?
The specific installation method and steps for stainless steel double headed bolts are as follows:
Check the thread: First, check if the thread is qualified, if the length is sufficient, and ensure that the screw part does not hit the bottom of the hole. At the same time, remove any accumulated material from the screw hole.
Assemble the first screw: Thread the shorter end of the thread into the blind hole of the machine body, making sure to rotate it all the way to the position close to the polished rod.
Applying lubricating oil: When adding two nuts to the longer end of the thread and screwing them in, first apply lubricating oil to the double headed bolts to prevent them from getting stuck during the screwing process, and they can also be disassembled for repeated installation.
Assembly of the second screw: Thread the longer end of the thread into the threaded hole of another body or workpiece to ensure sufficient tightness of the thread fit, usually using a transition fit.
Use tools to tighten: Use a manual or electric wrench to tighten, maintain uniform torque, and avoid excessive tightening that may cause thread damage or material deformation.
For connections that need to withstand large loads, torque wrenches or torque wrenches can be used to control the tightening torque.
comparison of product parameters
| Texture of material | 304 stainless steel |
strength | A |
| Product color | Natural color | Product packaging |
Carton packaging, customized packaging Customized according to needs |
| surface treatment | Customizable | Payment method | T/T |
FAQ
Q: About samples?
A: Yes, we can provide samples.
Q: How long is your delivery time?
A: The general delivery time is 30-45 days after receiving your order confirmation. Anther, if we have the goods in stock, it will only take 1-2 days.
Q: Do you provide sample ? Is it free?
A: If the sample is low value, we will provide the free sample with freight collect. But for some high value samples, we need to collect the sample charge.
About our company

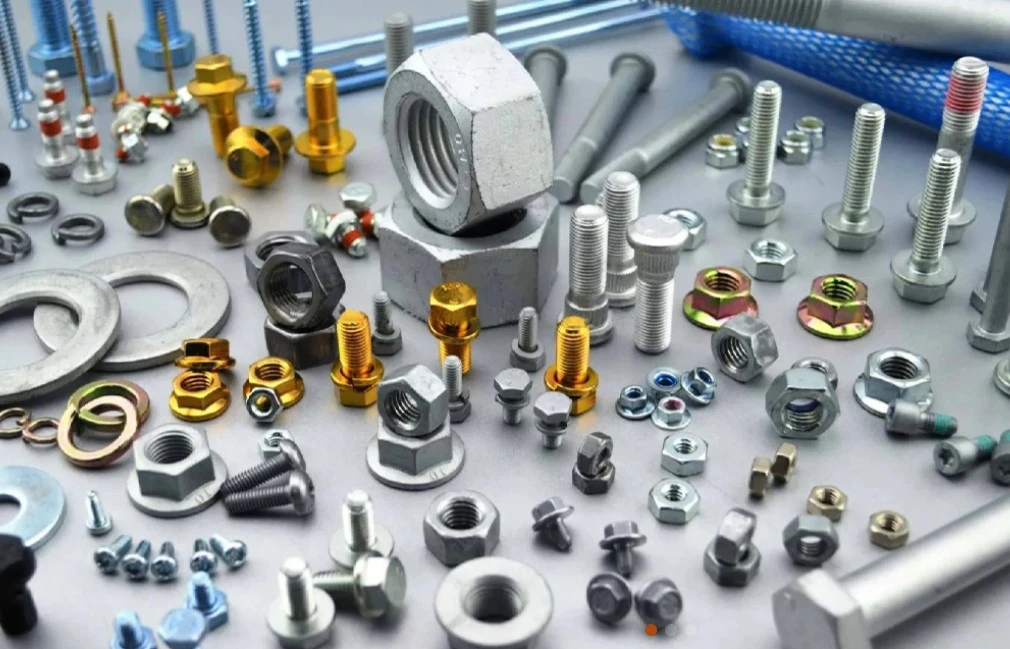

We are a supplier from China, Shuifu Hanyang Machinery Co., Ltd., a limited company with decades of history. We are the source manufacturer of fasteners, with our own factory and advanced production equipment. We mainly produce bolts, nuts, washers, springs and other fasteners, as well as various hardware products. We can produce any fasteners you need for you. You can send us the style you want, and our factory can help you manufacture them. We support customization of drawings. If you would like to further understand our company, please reply to me to learn more detailed information about our products.
