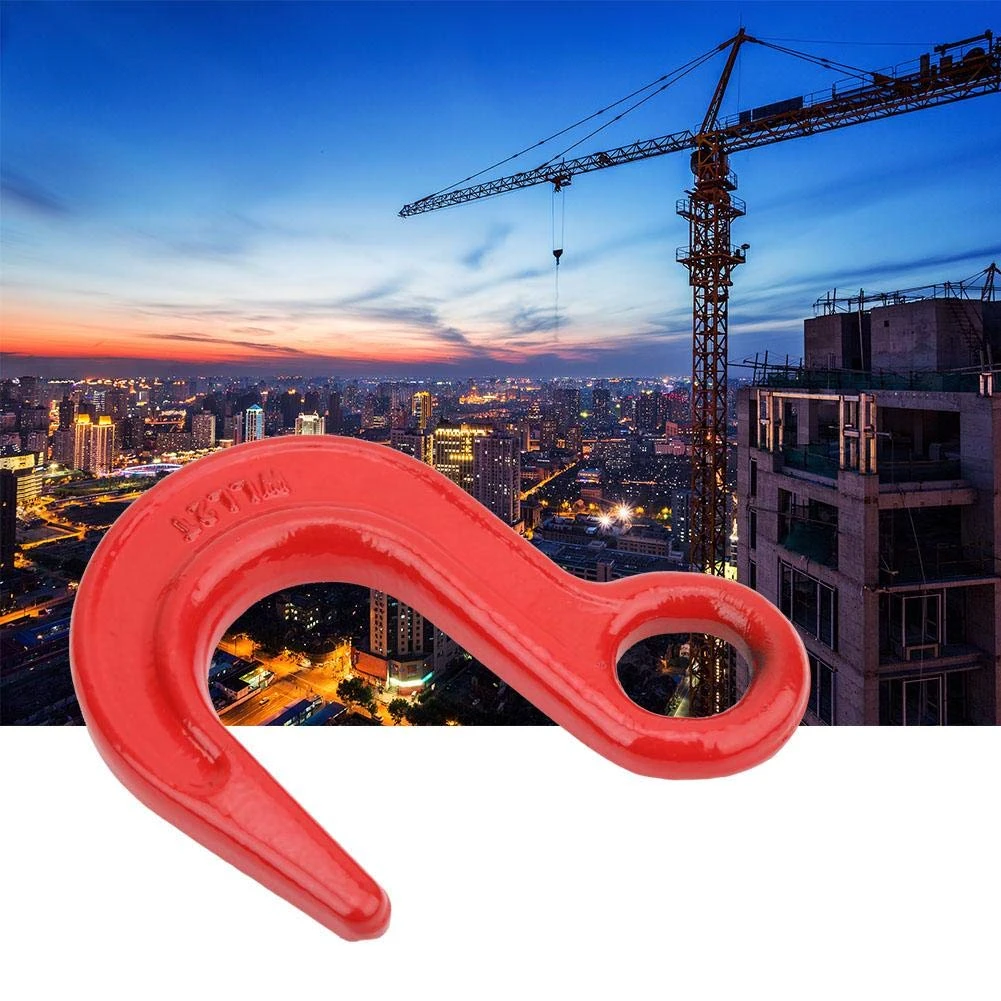

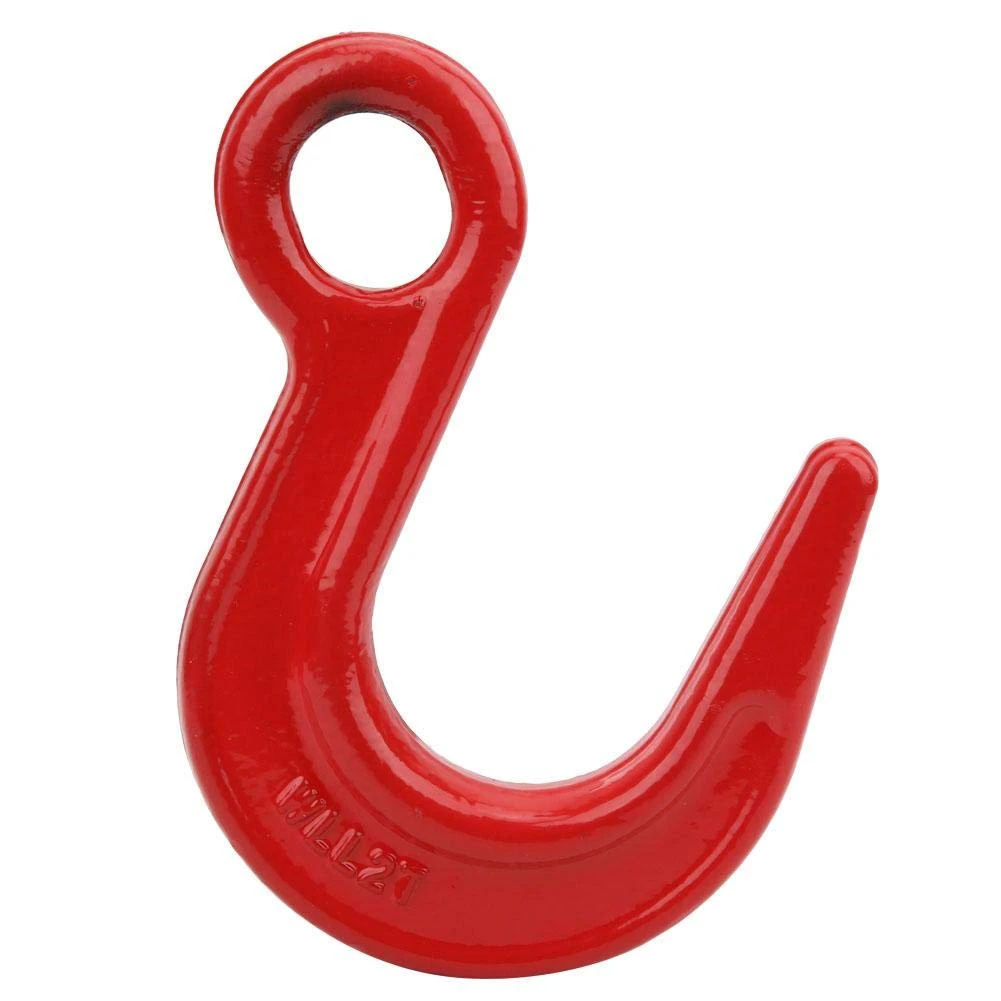

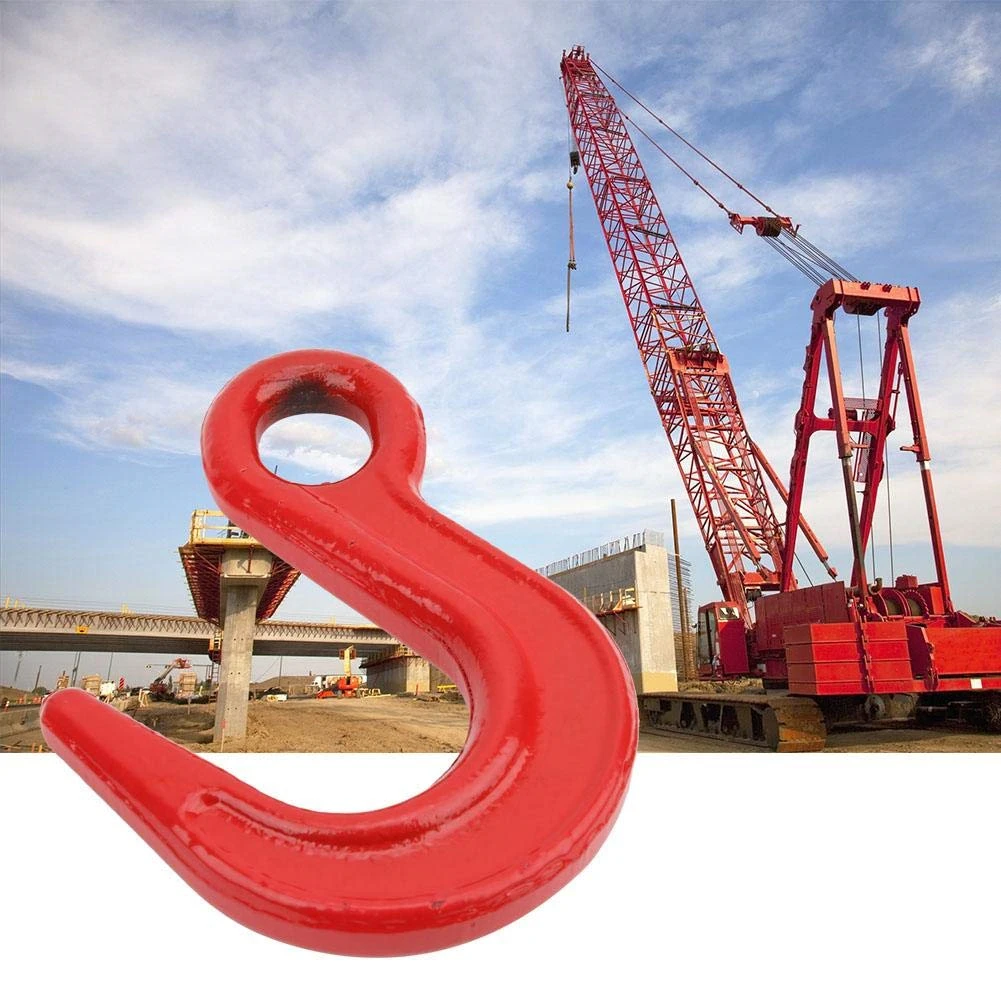

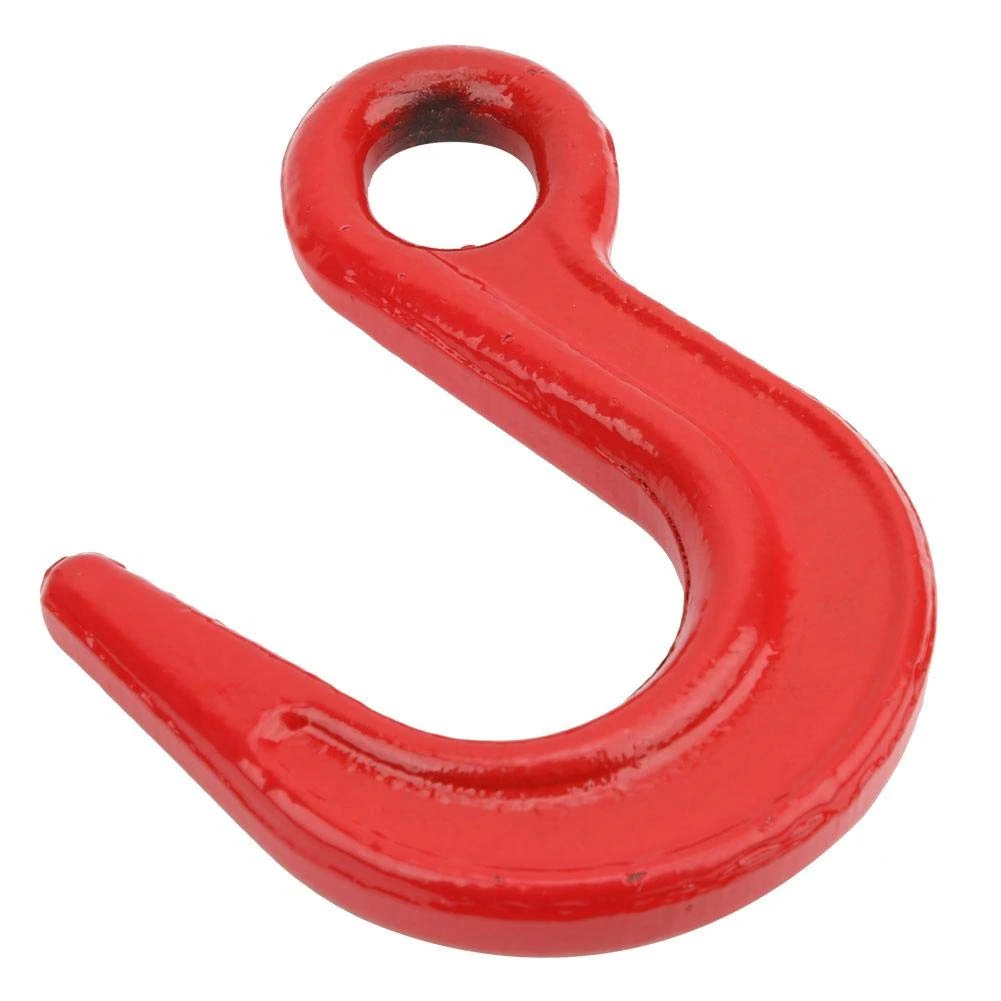

G80 Crane Heavy Duty Hook:High strength and strong load bearing,This Lifting Hook Forged by low carbon alloy steel, through high temperature quenching treatment, the hook features high strength and strong load bearing.
|
Product |
Working Load Limit(tons) |
Dimensions(in) |
Weights |
Weights |
|||
|
(lbs) |
(lbs) |
||||||
|
Carbon |
Alloy |
A |
B |
C |
w/latch |
||
|
HLF05G01 |
1/2 |
3/4 |
0.63 |
0.87 |
2.8 |
0.35 |
0.37 |
|
HLF05G02 |
3/4 |
1 |
0.75 |
0.94 |
3.22 |
0.55 |
0.57 |
|
HLF05G03 |
1 |
1.5 |
0.91 |
1.03 |
3.66 |
0.75 |
0.77 |
|
HLF05G04 |
1.5 |
2 |
1.12 |
1.06 |
4.09 |
1.25 |
1.28 |
|
HLF05G05 |
2 |
3 |
1.25 |
1.22 |
4.69 |
1.7 |
0.73 |
|
HLF05G06 |
3 |
5 |
1.56 |
1.5 |
5.78 |
3.6 |
3.66 |
|
HLF05G07 |
5 |
7 |
2 |
1.88 |
7.38 |
7.08 |
7.19 |
|
HLF05G08 |
7.5 |
11 |
2.44 |
2.25 |
9.06 |
13 |
13.17 |
|
HLF05G09 |
10 |
15 |
2.83 |
2.52 |
10.09 |
22 |
22.15 |
|
HLF05G10 |
15 |
22 |
3.54 |
3.46 |
12.2 |
33.8 |
- |
G80 Crane Heavy Duty Hook Anti- and anti-wear strength:Overall powder coating and heat treatment greatly improve anti- and anti-wear strength.
G80 Crane Heavy Duty Hook,Heavy-Duty Lifting Ring, Sling Hook Application:This Lifting Hook is applicable to factory lifting, harbor hoisting, construction engineering and other industries.
G80 Crane Heavy Duty Hook Safety latch design:Safety latch design prevents the falling off from the hook. Large opening design facilitates the installation of the .Good performance:High strength, excellent resistance to stress and cracking, not easy to deform.
