Products Description

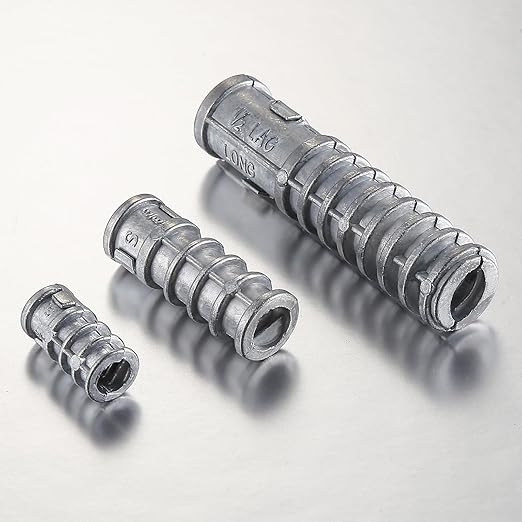

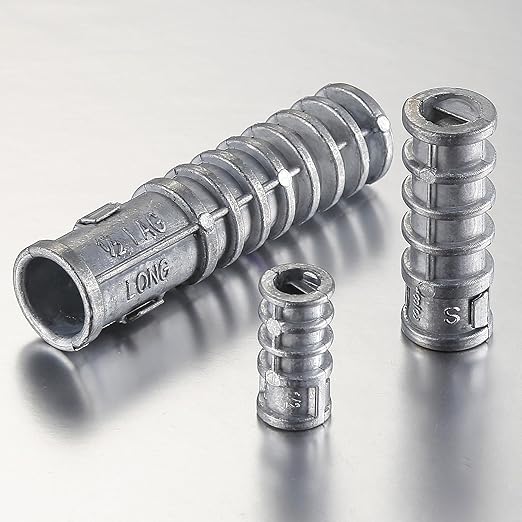

Tension shield anchor – Detailed Introduction
The Tension shield anchor is a two-part fastening system designed for use in masonry materials such as concrete, brick, and block.
It consists of a lag screw and a shield made from either metal (such as zinc-plated steel or stainless steel) or nylon.
When the lag screw is inserted and tightened, it causes the shield to expand outward, pressing firmly against the walls of the pre-drilled hole.
This expansion creates a strong, secure hold that is vibration-resistant and capable of supporting significant tensile and shear loads.
🔩 Key Features(Tension Shield Anchor Bolt):
Robust Construction
Tension shield anchor is typically manufactured from zinc-plated steel, stainless steel, or nylon.
Zinc-plated steel offers a balance of strength and corrosion resistance for general-purpose indoor and dry environments.
Stainless steel provides excellent resistance to corrosion and is ideal for outdoor, marine, or chemical exposure scenarios.
Nylon shields are non-conductive, lightweight, and often used in electrical installations or where metal corrosion must be avoided.
Reliable Expansion Mechanism
As the Tension shield anchor is driven into the shield, the internal taper forces the sides of the shield to expand against the base material.
This mechanical interlock ensures a tight and durable grip, even in weaker or porous masonry materials.
Versatile Applications
Tension shield anchors are widely used for:
Mounting heavy fixtures like HVAC units, satellite dishes, shelves, or handrails.
Supporting pipe clamps, electrical boxes, or industrial equipment in masonry walls.
Securing outdoor signage or structural supports in concrete or brick.
More Information
Material
Carbon Steel
Stainless Steel
Zinc-Plated/Galvanized
Aluminum Alloy
size

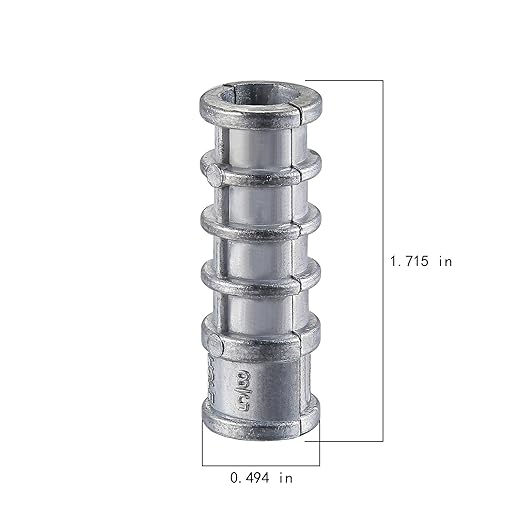

Lag shield anchors come in various sizes to accommodate different load requirements. Common diameters range from 1/4" to 3/4", with lengths varying from 1" to 6".
structure

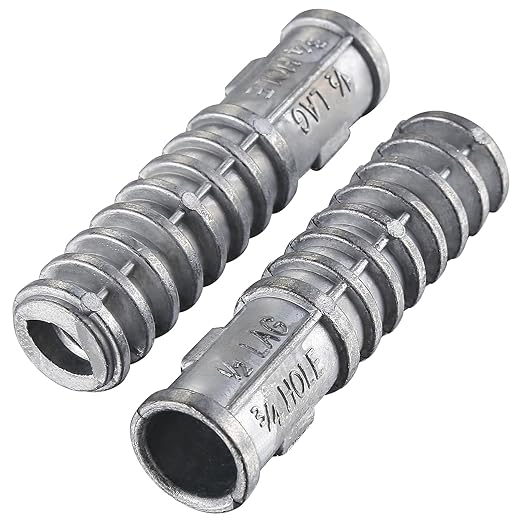

The lag shield anchor comprises two main components: the shield and the lag screw. The shield, made of lead or nylon, is inserted into a pre-drilled hole. When the lag screw is driven into the shield, the shield expands outward, creating a firm grip against the masonry material.
Application Areas
Lag shield anchors are used in a variety of applications, including:
Construction: Securing wooden frames to masonry walls.
Electrical: Mounting conduit straps and junction boxes.
HVAC: Installing ductwork supports.
| Product Name |
Lag Shield Anchors |
Brand |
Hanyang |
| Product Model | Customized according to your drawing |
Quality |
High Quality |
| Product Material | Stainless steel, Carbon steel |
Supply Capacity |
100000 pieces per month |
|
Packaging |
1. Bulk cartons+ wooden pallets 2. According to customer needs |
Payment Terms |
TT or other payment methods |
|
STANDARD |
ASTM A325 A325m |
Certificate |
ISO9001 |
|
Warranty |
6months |
Thread |
UNC, UNF, M, F |
| CLASS |
Carbon steel:4.8,6.8,8.8,10.9,12.9 Others : Customized |
Specification |
Customized , OEM/ODM, as per client' s drawing or sample |
Our Products
Bolt
Nut
Customised fasteners
Our Services
mechanical equipment
Efficient and precise processing and testing equipment.
Technology Application
An experienced manufacturing company with professional design, R&D and manufacturing teams.
Standardized production
Complete production and processing on time and quickly
Provide customized services
Provide drawings and samples according to customer requirements
Order Management
Smoothly and actively complete customer orders
responsibility
Full supervision and management from product manufacturing to delivery to customers
Our Certificates
Our production and dispatch
20
years
We have been working in the industry since 2015.
34
nations
We have worked with 34 countries on five continents.
27
harbours
We have multiple ports to ship to.
Our address
Gaotanba E-Commerce Industrial Park, Shuifu City, Zhaotong, Yunnan, China
Phone Number
86-15983127791
shelleysu77@gmail.com
FAQ
1.Are we a manufacturer or a trading company?
+
-
We are a manufacturer. We have professional pre-sales and after-sales service staff to serve you.
2.What are the shipping methods?
+
-
We can choose DHL, Fedex, UPS, as well as sea or air transportation.
3.What are the payment terms?
+
-
Our payment terms are usually 30% T.T deposit in advance and 70% balance before shipment.
4.Do you provide samples? Are the samples free?
+
-
We generally provide samples for free, but the freight should be paid by the customer.
5.How do you ensure quality control?
+
-
We are responsible for quality control not only of the production line, but also of the entire ready-made order. Each order needs to be inspected in detail before shipment.
