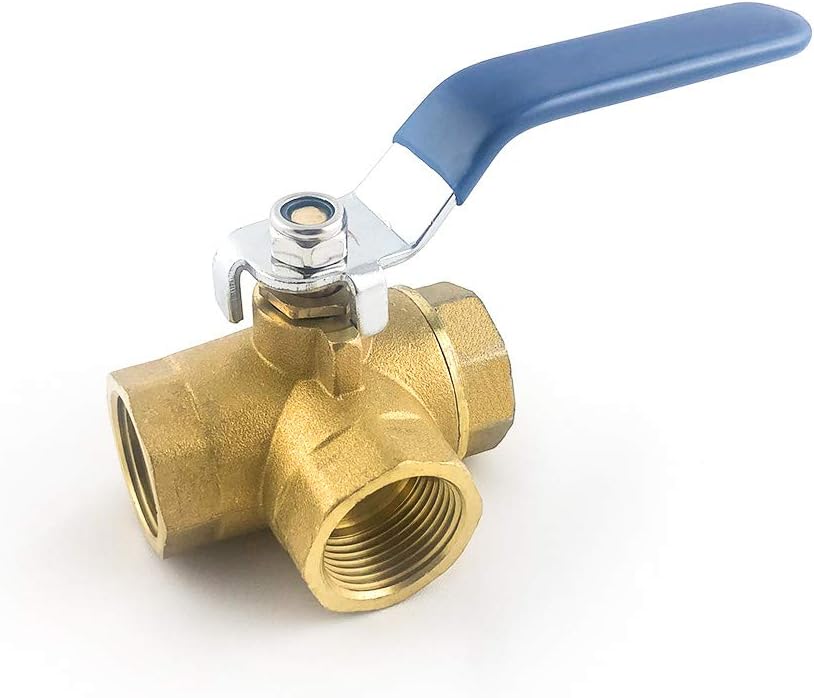

The opening and closing component of a lever ball valve is a sphere with a circular channel, which rotates around the axis perpendicular to the channel.
The opening and closing of the channel is achieved by the rotation of the sphere with the valve stem. This design allows the ball valve to close tightly by
only rotating 90 degrees, with low operating torque.
|
Product Name |
Level Ball Valve |
Handle material |
brass |
|
Material |
brass |
Color |
customizable |
|
Specific uses of the product |
Used for water, oil, and gas |
Size |
1inch,2inch,3inch,4inch. customizable |
|
MOQ |
5000pcs/Each size |
Sample |
Samples can be provided |
|
Payment |
T/T, other |
Packing |
As customer required |
The lever ball valve not only has a simple structure and good sealing performance, but also has a small volume, light weight, low material consumption,
small installation size within a certain nominal diameter range. It also has a small driving torque, is easy to operate, and is easy to achieve fast
openingclosing.
With the technological advancement of lever ball valves, they will have a wider range of applications in the foreseeable short term, especially in oil and
gas pipelines, refining and cracking units, and the nuclear industry. In addition, ball valves will also become one of the dominant valve types in other
industries with large and medium-sized diameters and medium to low pressure fields.
